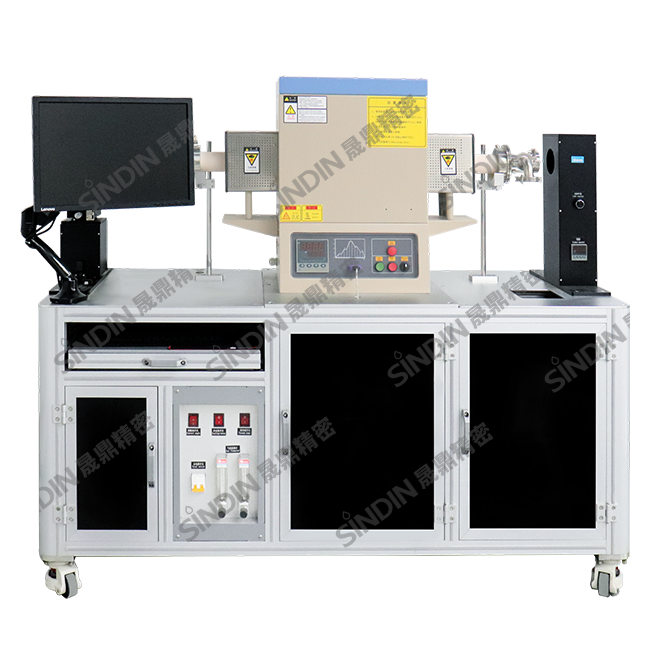

SDC-1500Rack type high temperature contact angle measuring instrument

Product comparison

Download

Product manual.pdf Download

Product Features

Dual temperature monitoring system, both external and built-in, can monitor the temperature in the heating furnace in real time;
Equipped with high temperature special left and right contact angle fitting, the differential circle method is used for fitting, and the accuracy is as high as ±1°;
The room temperature can reach 1700℃ under normal pressure, and the room temperature can reach 1500℃ under vacuum conditions;
Equipped with a dual-channel inert protection device, which can simultaneously or independently use a certain process gas to protect the internal metal;

Product description
Specification parameters
Hardware options

Sample platform system

size（LWH）	16706561406mm
weight	500KG

High temperature system

temperature control range	Normal temperature to 1700°C under normal pressure, normal temperature to 1500°C under vacuum conditions
Heating system	Silicon molybdenum rod heating element, constant temperature zone length 120mm, intelligent 30-segment programmable temperature control
Heating pipe	Outer diameter 60mm, inner diameter 50mm, length 1000mm
Temperature measurement system	Dual temperature monitoring system, both external and built-in, measurement accuracy ±1°C
window flange	Coaxial double window flange device for contact angle test, built-in vacuum system and protective gas pipeline, built-in double water cooling device
Professional base material for brazing experiment	Supporting special materials for brazing experiments

Vacuum system/Gas protection

Vacuum range	Precision molecular pump, room temperature can reach 10^-5Pa, vacuum10^-3Pa
Vacuum measuring range	Measuring range 10⁵~10^-7Pa, full scale high precision vacuum gauge
Gas protection system	Equipped with dual-channel inert protection device, which can use a process gas simultaneously or separately to protect the internal metal

Cooling system

temperature range	5-35℃
External dimensions（LWH）	460380590mm
water pump flow	15L/min Cooling system capacity≥11L
Measured Refrigeration Capacity	1520W

Light source and acquisition system

light source	Dense LED adjustable blue tone industrial grade cold light source
service life	More than 25,000 hours
CCD	SONY imported high-speed industrial-grade chip, 1.3 million pixels, 25 frames/S
camera lens	0.7-4.5 times high-definition long-focus industrial-grade continuous zoom microscope, working distance 500-700mm
Acquisition system adjustment	Optical imaging inclination, -10~10° continuously adjustable, ±25mm adjustable from left to right, front and rear, height ±10mm

Fitting type

210帧高速工业相机

860帧高速工业相机
