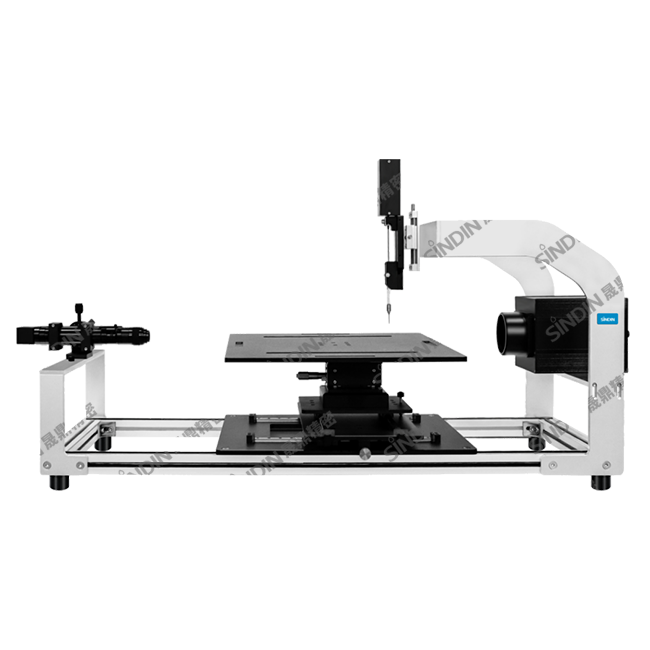

Large platform contact angle measuring instrument SDC-1000

Product description
Specification parameters
Hardware options

Equipment overall parameters

Model	SDC-1000
Types of	desktop
Specification（LWH）	1430480690mm
weight	50.5kg
contact	non-contact measurement

Sample platform system

Measurable sample size（L*W）	410mm*410mm
Platform move	manual
Platform movement range	200mm250mm20mm
Platform rotation	360° rotation

Acquisition System

camera	U3.0
lens type	High Fidelity Microscope Lens
lens magnification	6.4 times
zoom	±5mm
maximum shooting speed	2500 frames/s more models optional
Front and rear adjustment of the lens	60mm
Lens tilt adjustment	±10°

Injection system

drop sample	Automatic liquid filling
dripping accuracy	0.01 μL Upgradable picoliter system
Injection movement method	Manual (upgradeable to automatic)
Liquid injection movement stroke	60mm*100mm
Injection Control	software digitization

Light source system

light source	Focus LED
wavelength	450-480nm

Test function

Contact Angle Analysis (Complete Set)	●
Surface Free Energy Analysis	Zisman、OWRK、WU、WU 2、Fowkes、Antonow、Berthelot、EOS、Adhesion work, wetting work, spreading coefficient
surface interfacial tension	●
forward and backward angle	●
Rolling slip angle	--
Dynamic Video Measurement	●
Injection percentage	●
sloping form	--
captive bubble method	●
Top view measurement	●
3D form	optional
Temperature control platform	optional
video shooting	●
Online measurement	●
Analysis method	Three-phase automatic
Data output	●
programming test	●
Morphology spectrum	●
Fuzzy topography measurement	●
batch sessile drop method	●
software	Contact angle V3/V5
