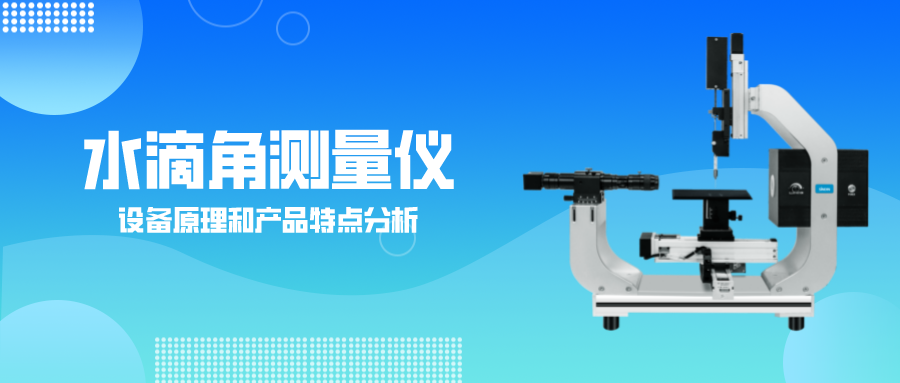

The water drop angle measuring instrument is widely used to measure the contact angle of liquid to solid, the surface tension of liquid and the surface energy of solid.
The principle and product features of the water drop angle measuring instrument:
The water drop angle measuring instrument is mainly composed of five major parts: video acquisition system, injection system, control (light source) system, three-axis moving sample stage, and analysis software. The device uses the principle of optical projection imaging to perform three-phase interface contours of gas, liquid and solid. Fidelity acquisition for precise analysis.
Video acquisition system: imported industrial-grade CCD camera, stable shooting and clear image; the lens adopts high-fidelity telecentric zoom zoom lens, no deformity, no distortion, 0.7-4.5 times continuous zoom function, German Leica multi-layer Seiko coating Technology, imaging 0 errors.
Injection system: There is software quantitative constant speed control, the droplet is stable, the precision is as high as 0.01 microliter, and the highest precision can reach picoliter.
Control (light source) system: densely arranged array LED cold light source design, uniform brightness, and avoids the volatilization of small droplets caused by extra heat, clear image and long life.
Three-axis mobile sample stage: There are manual and automatic precise adjustment platforms, the operation is flexible and accurate, and the sample stage can be customized according to the actual sample size.
Analysis software: Powerful functions, Shengding water drop angle measuring instrument software has the comprehensive, complete and accurate one-key automatic fitting ability on the market, which can meet the fitting of various droplet shapes, and is suitable for the measurement and analysis of the surface contact angle of any material.
Sindin Precision Automatic Water Drop Angle Measuring Instrument SDC-500
Features of automatic water drop angle measuring instrument:
1. X, Y, Z three-axis automatic positioning, multi-point can be set arbitrarily, one-button automatic measurement;
2. Automatic sample injection → automatic liquid contact → software automatically completes the measurement → automatically changes to the next position (multiple cycles are possible);
3. Support the test plan setting of the specified sample and call the automatic test plan.
SDC-500 automatic contact angle measuring instrument focuses on automatic multi-function measurement. Highly intelligent, one-button automatic batch inspection; multi-point programming control system, which can be used directly with the assembly line to solve the large workload of multi-point analysis and full inspection for customers, improve production efficiency and save labor costs.
