ESD removal scheme for film industry
Plastic film has the characteristics of light weight, moisture and oxygen resistance, and good air tightness. It is the basis of various production packaging materials, and is widely used in food, printing and packaging, paper protection, electronic industry and other fields.
In the production process of plastic film, due to the existence of a large number of idlers, rubber rollers and metal rollers, a large amount of friction of insulating film materials will produce static electricity of more than 100000 volts, which will seriously affect product quality, production efficiency and production safety. Therefore, static electricity must be effectively eliminated in the production process of film.
Effect of ESD on Thin Film Process
01 Winding and sticking
In the process of rapid reeling and unwinding, a large amount of friction, peeling and extrusion will occur between the film material and the roll, which will cause electrostatic charges of different electrical properties to accumulate on the surface of the object. With the increase of speed and time, electrostatic values will accumulate, causing abnormalities such as winding or wrinkling
02 Cutting error
Due to the existence of static electricity, the sheets of the coated finished products repel or attract each other, which is difficult to slide off and fill with air. It is very difficult to tidy up, which can not be conveniently done. It is easy to cause cutting errors to ensure that the rules are in the same standard position.
03 Adsorb dust
Due to the adsorption of static electricity, small dust in the air will adhere to the surface of plastic film, affecting the cleanliness of film products and subsequent processes.
04 Poor printing
As the small dust absorbed by static electricity adheres to the surface of the plastic film, bright spots and phantom images will be generated in the subsequent printing process, resulting in poor printing.
05 Cause safety accidents
If the static electricity accumulated in the plastic film cannot be released in time, it may be discharged due to the continuous rise of the static voltage. The electric spark formed will quickly ignite the flammable gas volatilized by the organic solvent, resulting in the deflagration of the adhesive and diluent existing in the gluing mechanism, igniting the plastic film, paper and other combustibles, and causing a terrible fire.
Dynetech ESD Scheme

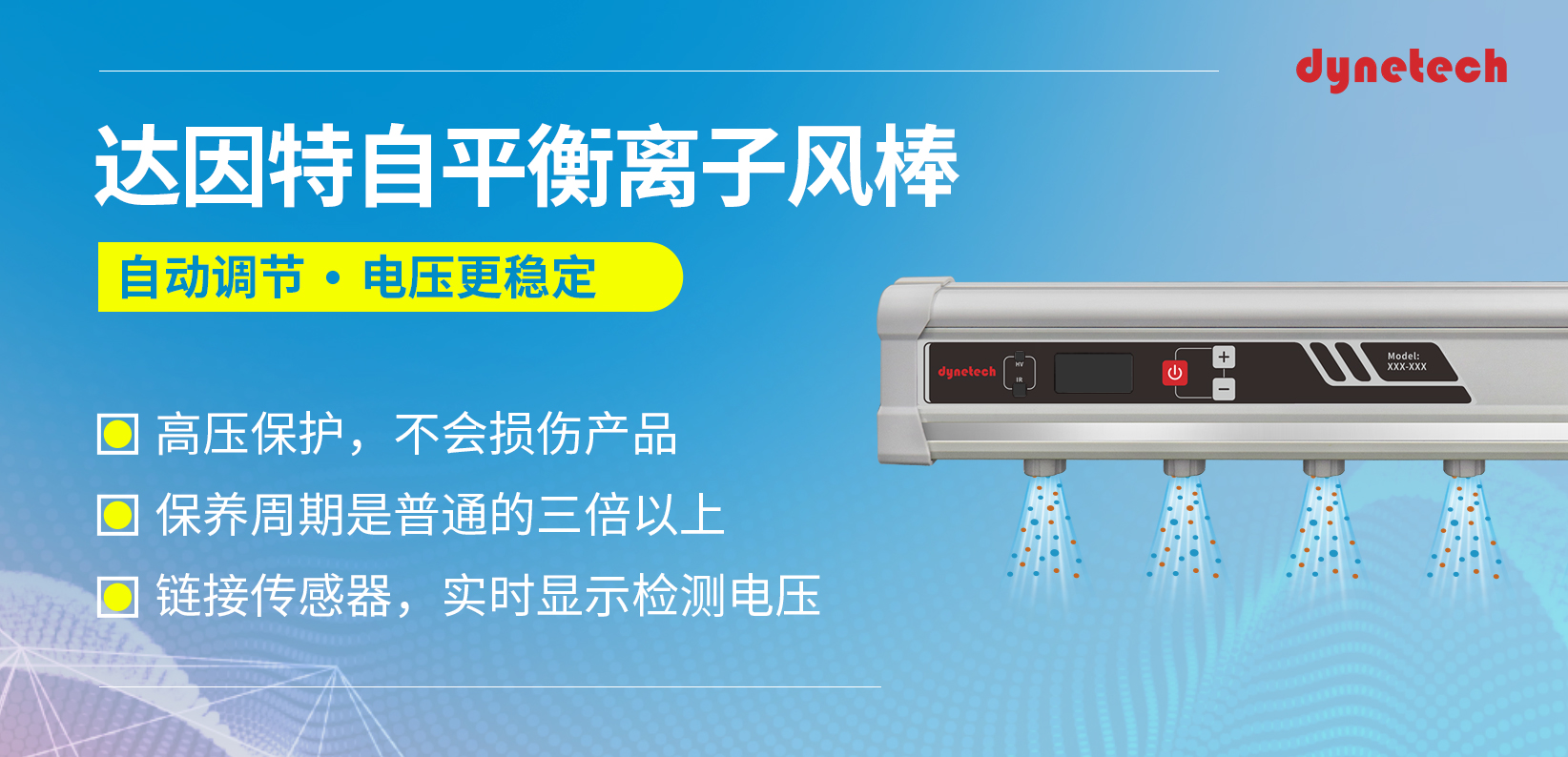

For electrostatic removal in the film industry, it is recommended to use Dyne rod type electrostatic eliminator. Its flat structure design is very suitable for installation in automatic equipment in the film manufacturing process.
Advantages of Dyne rod electrostatic eliminator
| Customized length
350~3000MM can be customized according to process requirements
| Pulse AC ionization mode
In the ionization process, the ionized ion quantity is large and the loss is small
| PLC can be connected
High voltage alarm, power on indication, cleaning indication and other monitoring outputs
| Integrated design of air passage
It can effectively ensure the stability of the equipment during use
| Balance manual calibration function
Adjust the balance through the "+-" button on the rod body
| Adjustable output frequency of positive and negative ions
Suitable for different distances, achieving fast static elimination speed
| Cleaning reminder function
Remind the user to clean the discharge electrode through nixie tube indication
| Visualization of working status
Real time display of working status and external ion level

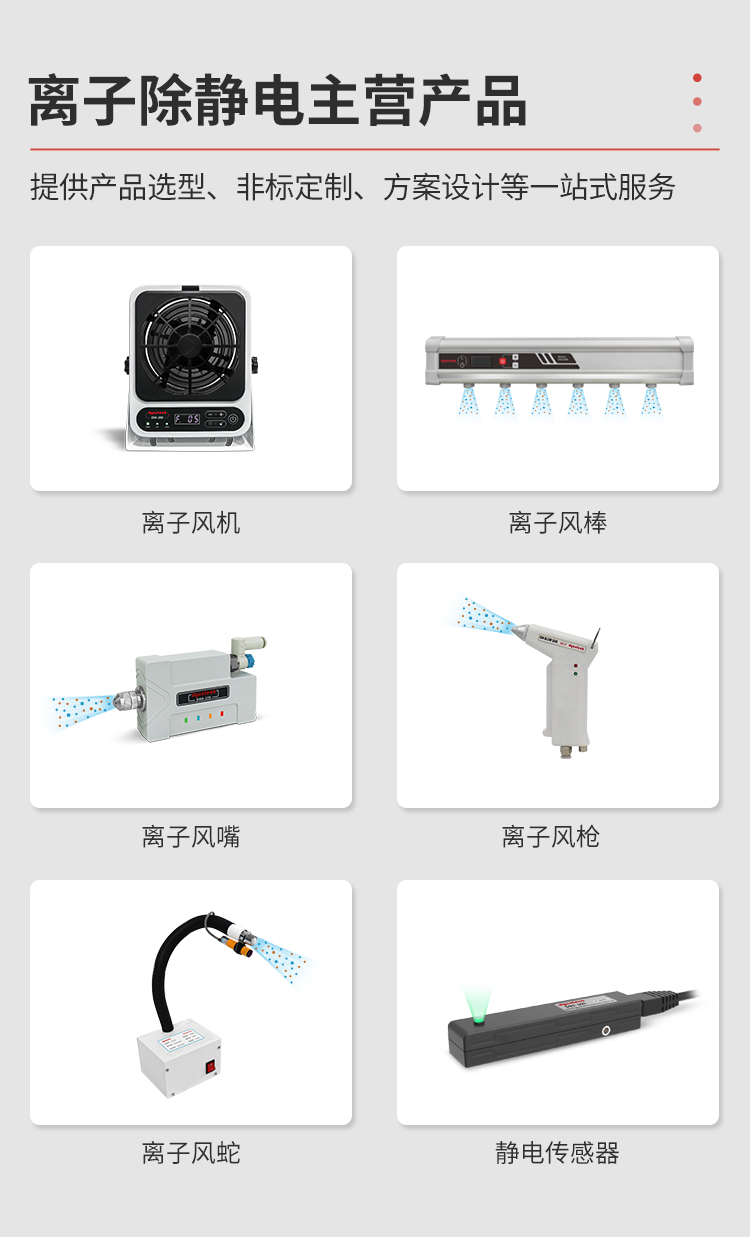

Dynetech ESD Series Products
_02.jpg)
