Application of Dynetech ESD Protection system in Mini LED Industry
As people continue to pursue the ultimate visual experience.

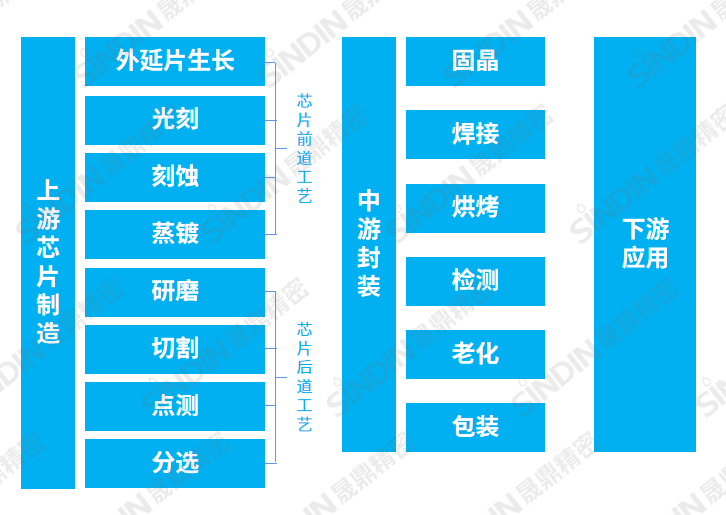

If you look at the flowchart alone, it may not touch much. Let's list a set of numbers:
In the upstream chip grinding process, the substrate needs to be thinned from the initial 800 μ m to 85 μ m.
The size of a single chip after cutting process is about 100 μ m.
A Mini LED display module with a resolution of 180x160has 3 LED chips per pixel, and 86400 chips are needed.
In the Mini LED production process, due to the smaller and smaller size of chips and electronic components, their precision is also improving, and the chip breakdown caused by electrostatic discharge (ESD) and dust adsorption caused by electrostatic adsorption (ESA) will have a fatal impact on product quality, so in the Mini LED production process, it is necessary to build a complete ESD protection system.
02 ESD Protection in Mini LED process

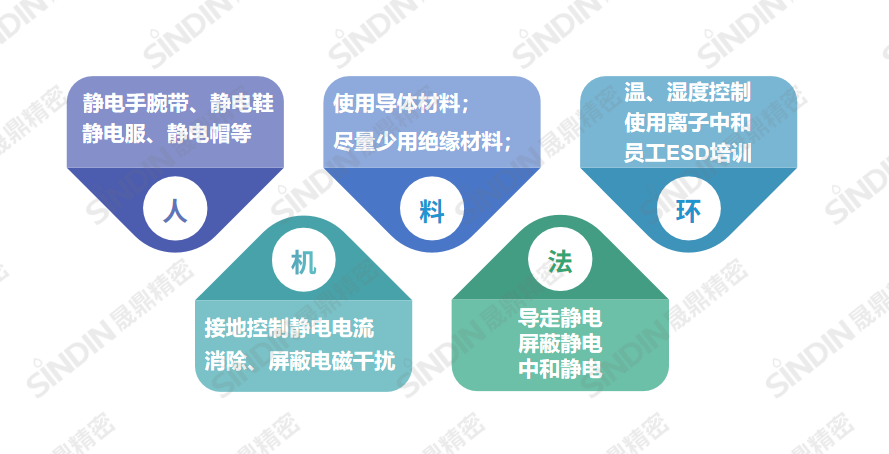

The specific measure to establish the ESD protection system is to set up an anti-static work area, which needs to be controlled from five aspects: human, machine, material, law and ring.
No matter how to control, we can not avoid the use of insulating materials and the generation of static charge, so it is very necessary to choose a suitable electrostatic eliminator.
Darnite ion electrostatic eliminator is of all types, suitable for a wide range of scenarios, equipped with ion self-balancing technology, self-cleaning function, replaceable discharge needle, etc., to eliminate static charge and reduce maintenance costs.
03 Introduction of Dynetech ESD Intelligent Wireless Internet of things Management system

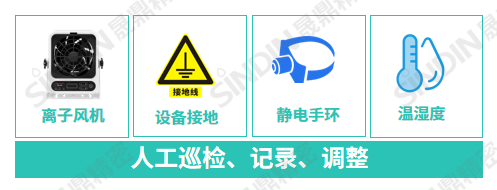

Current situation of ESD control

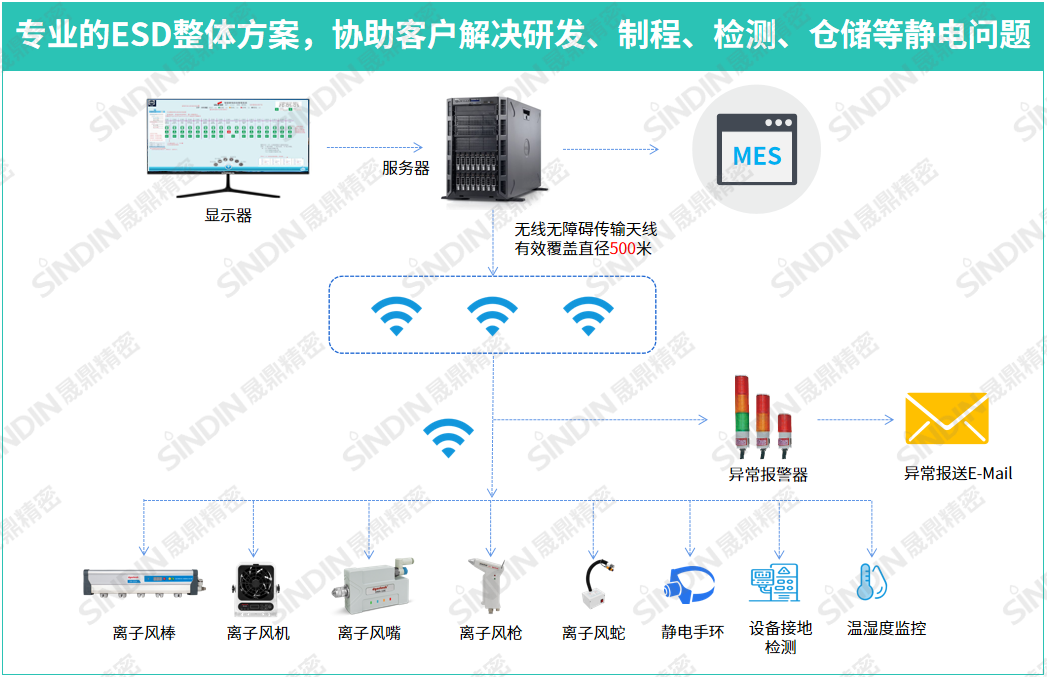

Dynetech ESD Internet of things system
The Dynetech ESD Internet of things system connects ESD hardware such as ion eliminator, temperature and humidity detection, and can also be connected to electrostatic wrist straps, equipment grounding, electrostatic station pads, etc., thus forming a complete electrostatic protection system.
Various electrostatic indicators, running status and other data are dynamically displayed through the display panel.
It has the functions of abnormal alarm, history tracing, intelligent analysis, etc., and can be connected to the existing MES system of the factory, which is the key to improve the quality of precision electronic devices.
04 Introduction of Dynetech Ion Electrostatic eliminator
---Please contact us for more ESD solutions---
